Discover the FieldQuip Equipment & Machinery Range

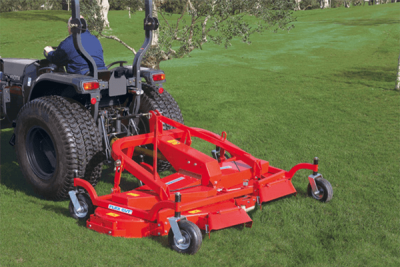

Wiedenmann Flex Cut 230 Finishing Mower

New FieldQuip Major MJ70 Rigid Deck Mowers

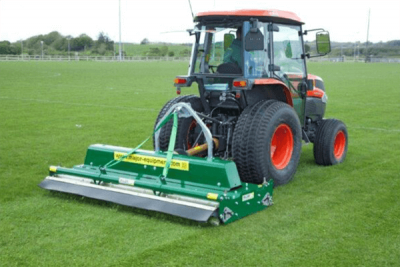

Major MJ70 Rigid Deck Mowers

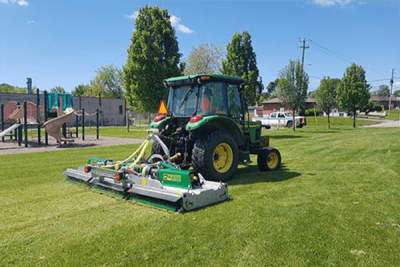

Major MJ71 Winged, Three Point Linkage

New FieldQuip MJ71 Swift Series Front Mount Finishing Mowers

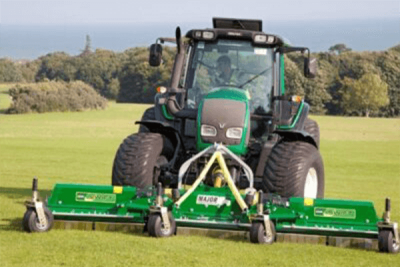

MJ71 Swift Series Front Mount Finishing Mowers

New FieldQuip MJ71 Swift Series Trailed Finishing Mowers

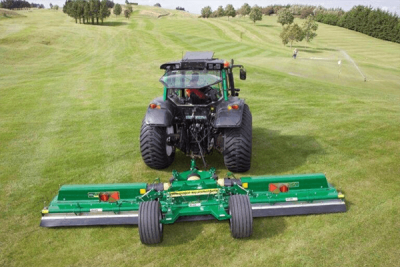

MJ71 Swift Series Trailed Finishing Mowers

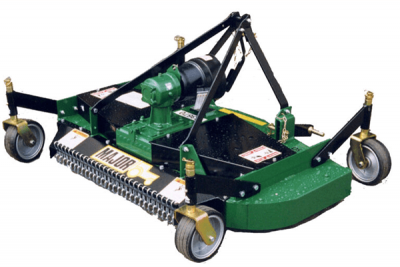

Major MR Finishing Mowers

New FieldQuip Fieldquip Single Tyne Pipelayer

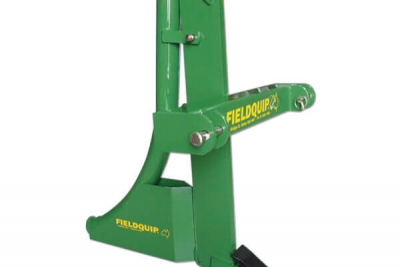

Fieldquip Single Tyne Pipelayer

ModelWorking WidthWeightHP(Rec)
STR500 0.15x.032m 0.6m depth 60kg 35
PLY500 Suits STR500 0.07m opening 20kg 35

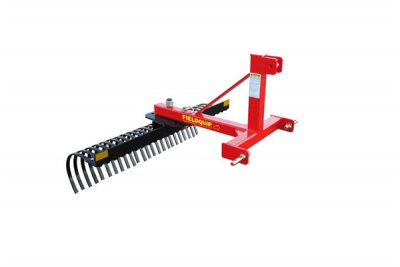

Fieldquip Landscapes Rakes

ModelWorking WidthWeightHP(Rec)
CLR60-01 1.5m 65kg 24
CLR60-03 1.5m 65kg 24
LLR72-01 1.8m 94kg 40
LLR72-03 1.8m 94kg 40
LLR84-01 2.1m 102kg 40
LLR84-03 2.1m 102kg 40

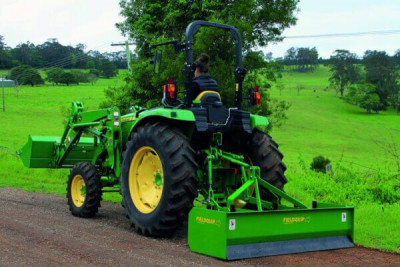

Fieldquip Box Blades

Box Blades are ideal tool for finish grading, levelling and backfilling.

ModelWorking WidthWeightHP(Min.)
BBX48-01 1.2m (3'6") 118kg 35
BBX48-03 1.2m (3'6") 118kg 35
BBX60-01 1.5m (4'6") 148kg 35
BBX60-03 1.5m (4'6") 148kg 35
BBX72-01 1.8m (6') 176kg 35
BBX72-03 1.8m (6') 176kg 35

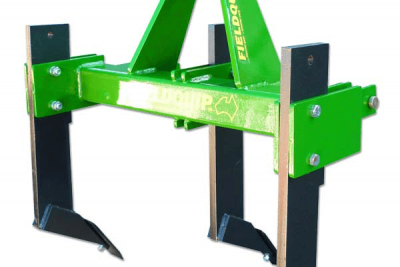

Fieldquip 3 Tyne Ripper

ModelWorking WidthWeightHP(Rec.)
TTR500 0.15m x 32 Tynes 0.9m depth 160kg 40-90

Fieldquip Subsoiler Std-Single

ModelWorking WidthWeightHP(Rec.)
SS1-01 650mm 51kg 20/50
SS1-03 650mm 51kg 20/50

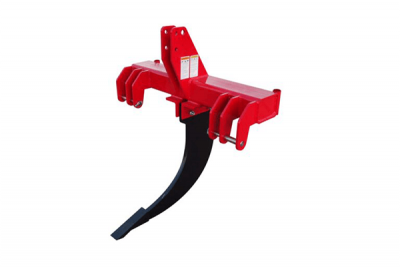

Fieldquip Subsoiler HD-Single

ModelWorking WidthWeightHP(Rec.)
HDSS1L-01 587mm 125kg 125
HDSS1L-03 587mm 125kg 125
New FieldQuip Fieldquip Subsoiler HD-Double

Fieldquip Subsoiler HD-Double

ModelWorking WidthWeightHP(Rec.)
HDSS2L-01 587mm 204kg 40/100
HDSS2L-03 587mm 204kg 40/100
New FieldQuip Fieldquip FEL Pallet Forks

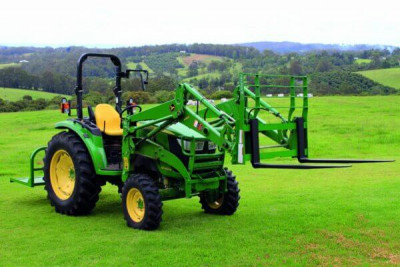

Fieldquip FEL Pallet Forks

ModelCapacityWeightAttachment
PF48E 1500kg@600mm 140kg Euro
PF48JD 1500kg@600mm 140kg John Deere QA

Fieldquip FEL Double Bale Spear

ModelCapacityWeightAttachment
BS2E 1500kg@600mm 140kg Euro
BS2JD 1500kg@600mm 140kg John Deere QA

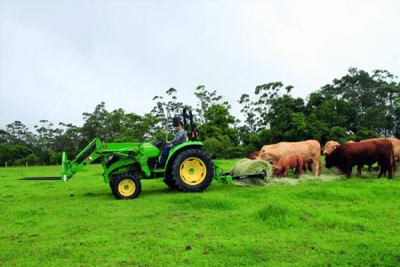

Fieldquip 3PL Bale Unroller

ModelCapacityWeightFinish
3PBU-01 Up to 900kg 148kg Red Powder Coat
3PBU-03 Up to 900kg 148kg Green Powder Coat

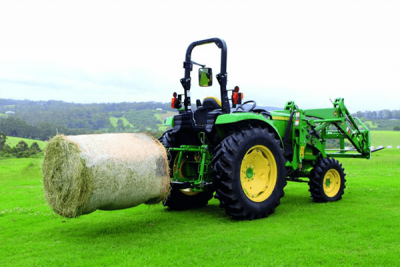

Fieldquip 3PL Bale Spear

An effective way to move or stack hay bales is with these economical 3 Point Linkage Bale Spears for handling round bales up to 2000 lbs.

ModelCapacityWeightHP (Min.)
3PBS-2 1000kg 44kg 25
New FieldQuip Fieldquip Single Tyne Ripper

Fieldquip Single Tyne Ripper

ModelWorking WidthWeightHP(Rec)
LSR-900 0.1mx.025m 0.4m depth 40kg 18
New FieldQuip Fieldquip Carry All

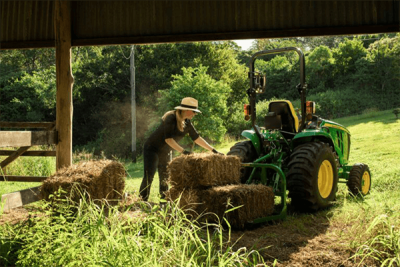

Fieldquip Carry All

ModelCapacityWeightFinish
CRA12-900 1.2m(48") 65kg Green/Red
CRA18-900 1.8m(72") 80kg Green/Red

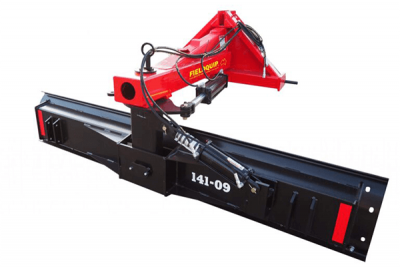

Fieldquip 141 Series Grader Blades

ModelWorking WidthWeightHP
14108-01 2.4m 600kg 140
14108-03 2.4m 600kg 140

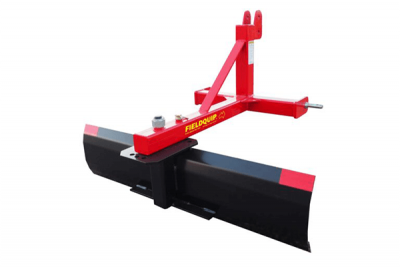

Fieldquip 20 Series Grader Blades

The 20 series gives small tractor owners a high quality blade for landscaping, levelling, backfilling and grading.

ModelWorking WidthWeightHP (Min.)
CRB48-01 1.2m (3'6") 62kg 20
CRB48-03 1.2m (3'6") 62kg 20
CRB60-01 1.5m (4'6") 68kg 20
CRB60-03 1.5m (4'6") 68kg 20

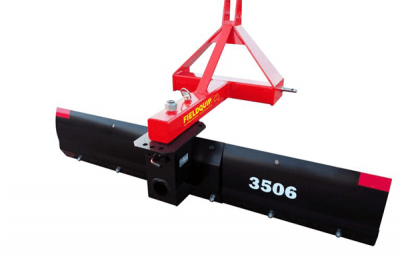

Fieldquip 35 Series Grader Blades

ModelWorking WidthWeightHP (Min.)
3505-01 1.5m (4'6") 127kg 35
3505-03 1.5m (4'6") 127kg 35
3506-01 1.8m (6') 140kg 35
3506-03 1.8m (6') 140kg 35

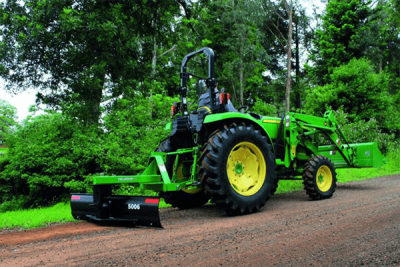

Fieldquip 50 Series Grader Blades

ModelWorking WidthWeightHP
5006-01 1.8m 183kg 50
5006-03 1.8m 183kg 50
5007-01 2.1m 195kg 50
5007-03 2.1m 195kg 50

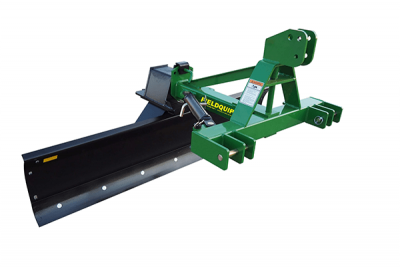

Fieldquip 70 Series Grader Blades

ModelWorking WidthWeightHP
7007-01 2.1m 244kg 70
7007-03 2.1m 244kg 70
7008-01 2.4m 260kg 70
7008-03 2.4m 260kg 70

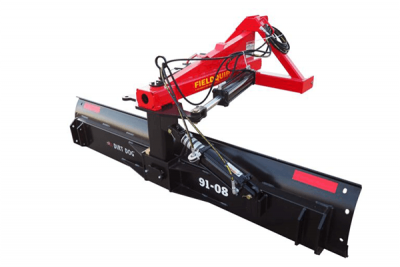

Fieldquip 91 Series Grader Blades

ModelWorking WidthWeightHP
9107-01 2.1m 370kg 90
9107-03 2.1m 370kg 90
9108-01 2.4m 380kg 90
9108-03 2.4m 380kg 90
New FieldQuip Fieldquip 3PL Compact Disc Harrows

Fieldquip 3PL Compact Disc Harrows

  • Sealed, self-aligning ball bearings
  • Front gang adjust to 0°, 7°, 14°, 21° with adjustment handle
  • Rear gang adjust to 7°, 14°, 21° with adjustment handle
ModelWorking WidthWeightHP (Rec.)No. Discs
100-3-01 1.5m 230Kg 35 16
100-8-01 1.98m 315Kg 35 16
200-6-01 1.98m 333Kg 65 20
200-18-01 2.43m 430Kg 65 20
300-10-01 2.43m 565Kg 95 20
300-22-01 3.0m 640Kg 95 24

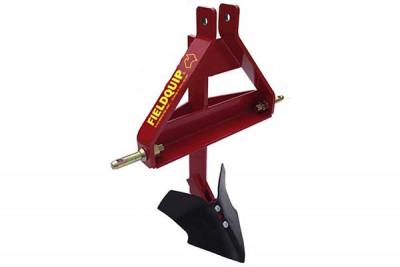

Fieldquip Compact Lay Off Plow

Features:

  • Cat. 0 Quick Hitch compatible
  • 5/8″ x 3″ shank
  • Perfect for creating planting beds using a sub compactor tractor
  • Replaceable heat treated 8″ double wing cutting blade
  • Un-matched fit and finish
ModelWeightHP (Rec.)
CLP-01 24kg 25
CLP-03 24kg 25

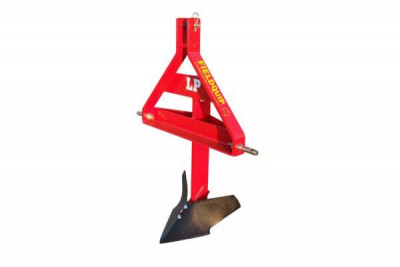

Fieldquip Lay Off Plow

Features:

  • Quick hitch compatible
  • 3/4″ x 4″shank
  • 16″double-wing cutting blade
  • Replaceable heat-treated 16″double-wing cutting blade
ModelWeightHP (Rec.)
LP-01 34kg 20-50
LP-03 34kg 20-50
New FieldQuip MJ Series Flail Collector and Scarifier

MJ Series Flail Collector and Scarifier

The MJ27-155 flail collector is designed specifically for maximum output and a high-quality finish for small compact tractors.This flail collector is perfect for cutting and collecting on all types of grass from lawns to conservation areas. It can be used during autumn to pick up leaves, litter, and even hedge clippings.

ModelWorking WidthWeightHP (Min.)
MJ27-155 1.5m 315kg from 25HP
MJ27-160 GB 1.6m 750kg from 45HP
MJ27-180 GB 1.8m 785kg from 50HP

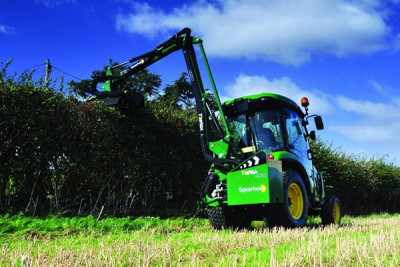

Spearhead Twiga Compact Series

Spearhead's Twiga Classic series reach mower incorporates a strong combination of power and flair with a stripped back look that contributes to the best value for money machine on the market.

ModelWorking WidthWeightHP (Min.)
Twiga Compact 320With mini pilot controls 3.2m (10'6") 450kg 25
New FieldQuip Twose 5 – Series Power Arm Reach Mowers

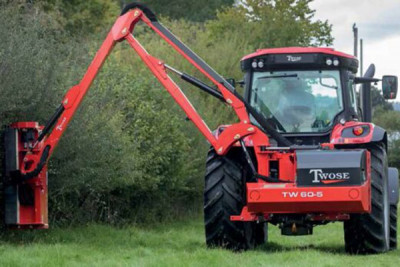

Twose 5 – Series Power Arm Reach Mowers

The 5 – Series Twose Power Arms are designed to deliver performance, value and durability.Offering a choice of reach from 6.0m to 6.7m making the 5 – Series an ideal fit for contractors and local government. The 5-series has the reach and power to tackle extensive verge-mowing and hedge-cutting duties.

ModelMax. ReachWeightHP (Min.)
TW60-5 6m reach mower with 1.2m flail head 6.0 m (19'6”) 1482kg 65
TW67T-5 6.7m reach mower with 1.2m flail head 6.7 m (21'9”) 1611kg 65
New FieldQuip Fieldquip Augers Double Cut

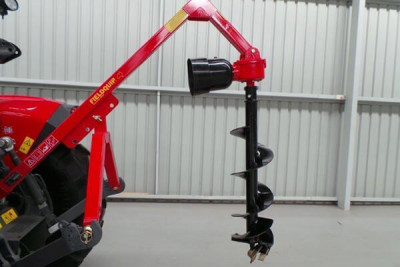

Fieldquip Augers Double Cut

ModelDiameter
AR100 100 mm (4")
AR150 150 mm (6")
AR230 230 mm (9")
AR300 300 mm (12")
AR380 380 mm (15")
AR460 460 mm (18")
AR610 610 mm (24")
New FieldQuip Fieldquip Lifestyle Series Post Hole Diggers

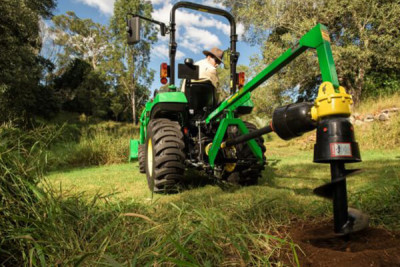

Fieldquip Lifestyle Series Post Hole Diggers

Fieldquip Australian Made Heavy Duty Post Hole Digger.

ModelSuite Tractor HPWeightGearbox Rating
LPD18-900 18-35 80kg 20hp
HPD20-900 18-75 140kg 20hp
HPD50-900 18-75 170kg 50hp
HPD75-900 18-75 190kg 75hp
New FieldQuip Rhino Rebel Series Tillers

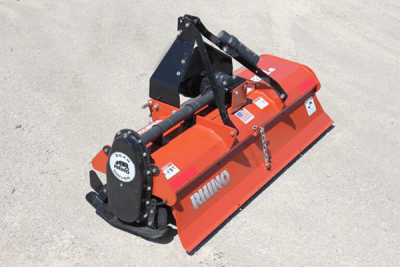

Rhino Rebel Series Tillers

Rebel Series Tillers are great for homeowner or commercial gardening, landscaping or soil conditioning, orchard and vineyard clean-up.

ModelWorking WidthWeightHP (Min.)
RHREB60 1.5m (4'6") 305kg 25/45
RHREB72 1.8m (6') 340kg 35/55
RHREB84 2.0m (6'8") 370kg 45/65

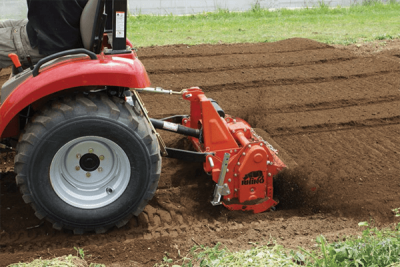

New FieldQuip Rhino SRT Series Tillers

Rhino SRT Series Tillers

Homeowner or Commercial Gardening, Landscaping or soil conditioning.

Orchard or vineyard clean-up are just some things you can use the SRT Tiller unit for.

ModelCutting WidthWeightHP
SRT40 1.0m 120kg 18

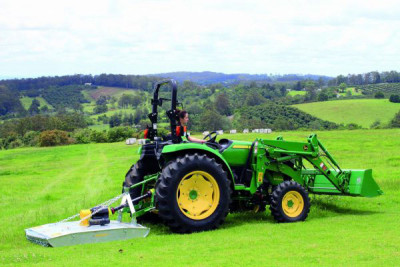

Fieldquip Sabre Series Slashers

The fully galvanised Sabre slasher is built tough in Australia with a strong 5mm pressed deck, floating headstock, friction clutch, adjustable skids and front and rear chainguards. The ideal slasher to suit your compact tractor.

ModelCutting WidthWeightHP (Min.)
SBR12-500 1.1m (3'6") 180kg 18
SBR15-500 1.4m (4'6") 250kg 20
SBR18-500 1.8m (6') 295kg 30

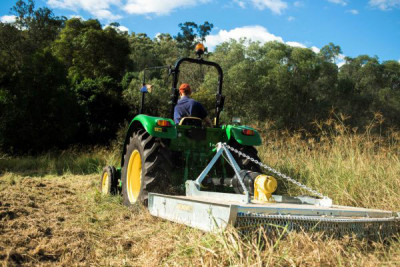

LE Series 75HP Slashers

Standard to suit 30-75 HP tractors.Gearbox available in red or yellow.

ModelWorking WidthWeight

HP (Min.)

LE50-920 1.2m (4') 285kg 30
LE60-920 1.5m (5') 350kg 30
LE70-920 1.8m (6') 420kg 45
LE80-920 2.0m (6'8") 500kg 50
New FieldQuip XLE Series 100HP Slashers

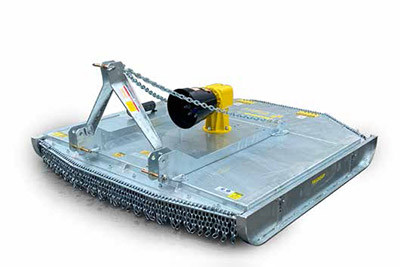

XLE Series 100HP Slashers

Suits 60 – 100 HP tractors.Pivoting headstock with chain backstays.

ModelWorking WidthWeightHP (Min.)
XLE60-920 1.5m (5') 360kg 60
XLE70-920 1.8m (6') 430kg 60
XLE80-920 2.0m (6'8") 510kg 60

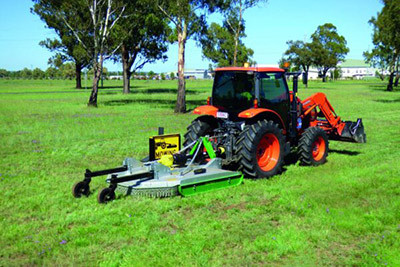

Fieldquip XHD Series Slashers

Heavy duty spring steel blade carrier and heavy duty swing back lift blades.Painted components finished in high quality durable two pack polyurethane.

ModelWorking WidthWeightHP (Min.)
XHD72 1.8m (6') 700kg 50
XHD84 2.15m (7') 880kg 70

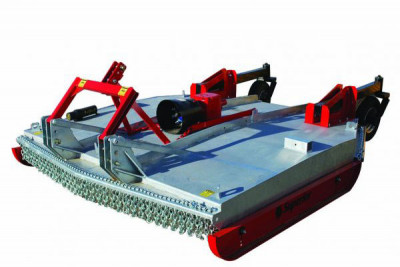

Superior LXCT Series Slashers

Laminated Spring Steel Blades & Beams and high Speed Extreme Duty Gearbox 150hp

ModelWorking WidthWeightHP (Min.)
LXCT6B 1.8m (6') 850kg 70
LXCT7B 2.15m (7') 980kg 80
LXCT8B 2.35m (7' 10") 1080kg 100
New FieldQuip Bush Hog Series Slashers

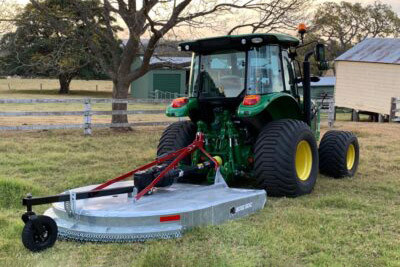

Bush Hog Series Slashers

Grass, weeds, and small brush are no match for these authentic Bush Hogs built cutters. Available in 5-foot, 6-foot, and 7-foot cutting widths, the Bush Hog Series Rotary Cutters are designed to deliver superior performance in tough conditions, day after day, year after year.

ModelWorking WidthWeightHP (Min.)
BH15-2R G 1.5m 288kg 25-40
BH16-2R G 1.8m 346kg 30-45
BH17-2R G 2.1m 464kg 50-70
New FieldQuip Superior LCL Series Side Throw Orchard Mowers

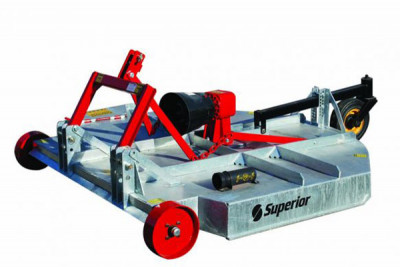

Superior LCL Series Side Throw Orchard Mowers

The LCL Series side discharge rotary slasher is a must have in every orchard. The LCL Series directs the grass clippings easily and efficiently under the tree line. Many orchardists have proved that depositing grass clippings under the trees aids in moisture retention and establishment of good bacteria.

ModelWorking WidthWeightHP (Min.)
LCL6 1.8m (6') 650kg 65
LCL7 2.15m (7') 750kg 75

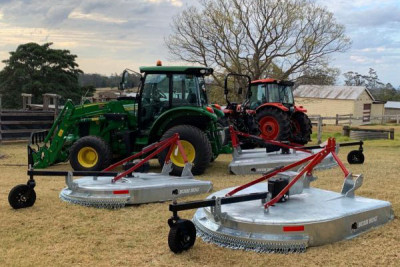

New FieldQuip Bush Hog 20 Series Slashers

Bush Hog 20 Series Slashers

Bush Hog's BH20 Series Rotary Cutters bring our famous reliability to brush cutting and weed and grass mowing for farms, estates, and highway right-of-way mowing. Built with Bush Hog's tough features, this series delivers superior performance the first day on the job and for years to come.

ModelWorking WidthWeightHP (Min.)
BH15-2R 1.5m (3'6") 288kg 25-40
BH15-2R G 1.5m (3'6") 288kg 25-40
BH16-2R 1.8m (6') 346kg 30-45
BH16-2R G 1.8m (6') 346kg 30-45
BH17-2R 2.1m (6'8") 464kg 50-70
BH17-2R G 2.1m (6'8") 464kg 50-70
New FieldQuip CS Pro Mower Shredder

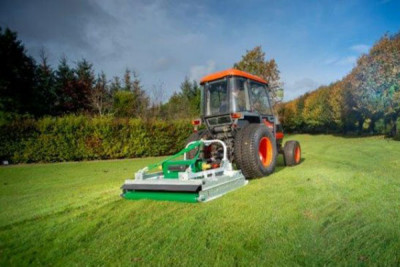

CS Pro Mower Shredder

The MAJOR CS Pro is a multi-purpose mower, designed for the maintenance of dense vegetation, long grass, estate lawns and fine turf.

ModelWorking WidthWeightHP (Min.)
MJ65-150 1.45m (4' 9") 290kg 20
MJ65-150F 1.45m (4' 9") 310kg 20
New FieldQuip Cyclone Range Rotary Slasher - Mulcher (with Rear Wheels)

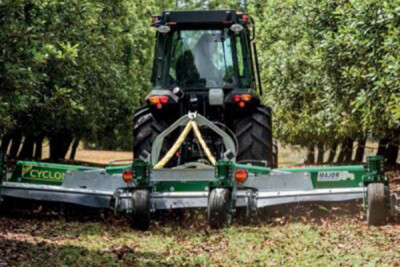

Cyclone Range Rotary Slasher - Mulcher (with Rear Wheels)

The MJ30-420DWW Cyclone has been designed especially for the macadamia industry. The twin wing centrally mounted 4.2 m Cyclone complete with rear wheels is the result of many farm visits, trials and listening to growers needs.

ModelWorking WidthWeightPower(HP)
MJ30-630 with rear wheels 6.30 m (20'6”) 1875kg 140-190
MJ30-730 with rear wheels 7.20 m (23'6”) 2235kg 150-210
MJ30-920 with wheels front and rear 9.0 m (29'5”) 3099kg 180-250

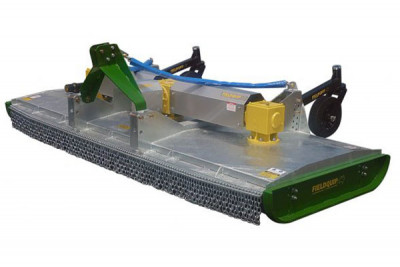

New FieldQuip Gearmower Series Slasher

Gearmower Series Slasher

Description coming soon!

ModelWorking WidthGearbox RatingHP (Rec.)
GM30-900 3.0m (10') 150hp 75
GM36-900 3.6m (12') 150hp 100

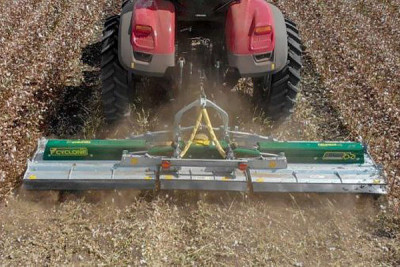

Cyclone Range Rotary Slasher - Mulcher (with Rear Roller)

The MAJOR Range of Cyclone Mowers has been designed to do the work of a flail mower but requires a fraction of the power and fuel that a flail mower would consume.

ModelWorking WidthWeightPower(HP)
MJ30-200 2.0m (6' 5") 600kg 50-100
MJ31-250 2.5m (8' 1") 785kg 70-120
MJ31-280 2.8m (9'2") 945kg 80-120
MJ30-350
Single Wing
3.5m (11' 5") 1120kg 90-140
MJ30-420
Single Wing
4.20m (13' 9") 1265kg 100-150
MJ30-420
Double Wing
4.20m (13' 9”) 1360kg 100-150
MJ30-560 5.60m (18'4”) 1680kg 110 – 150
MJ30-630 6.30 m (20'8”) 1875 kg 40-190
MJ30-730 7.20 m (23'6”) 2235kg 150-210

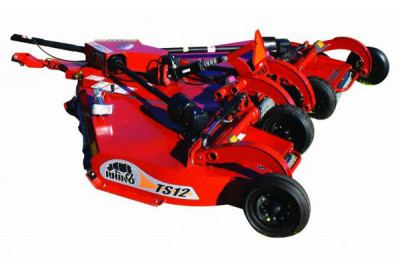

Rhino TS Series Flex Wing Slashers

Equal angle pivoting tongue and direct acting suspension system for uneven terrain.Designed for tractors with 35 – 60 PTO HP.Provides dramatic reduction in mowing time compared to most rigid deck cutters.

ModelWorking WidthWeightHP (Min.)
TS12-01 3.6m (12') 1247kg 35
TS12-03 3.6m (12') 1247kg 35
New FieldQuip Rhino Apex 3150 Series Flex Wing Slashers

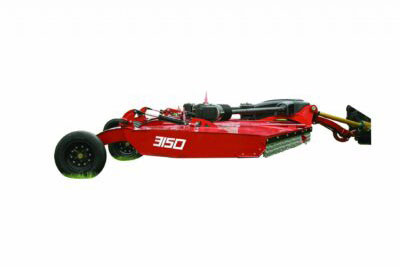

Rhino Apex 3150 Series Flex Wing Slashers

Smooth top design for easy cleaning of deck.160 HP gearboxes.Farm use.

ModelWorking WidthWeightHP (Min.)
3150-01 4.5m (15') 2355kg 50
3150-03 4.5m (15') 2355kg 50
New FieldQuip Rhino Epic 4125 Series Flex Wing Slashers

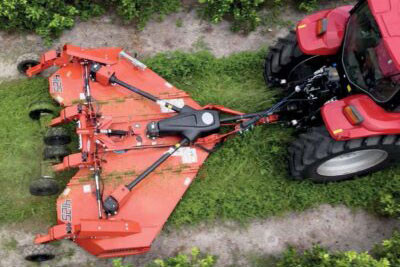

Rhino Epic 4125 Series Flex Wing Slashers

Heavy-duty 3.8m (12 1/2') commercial-grade rotary cutter Ideal for commercial mowing, heavy duty agriculture use, roadsides and firebreaks etc.

ModelWorking WidthWeightHP (Min.)
4125 3.7m (12'5) 181kg 50
New FieldQuip Rhino Epic 4150 Series Flex Wing Slashers

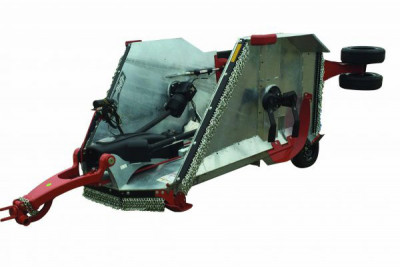

Rhino Epic 4150 Series Flex Wing Slashers

Suitable for clearing brush up to 100 mm in diameter. Applications include commercial mowing, farm use, general mowing, heavy-duty agricultural use, industrial mowing, pasture maintenance, roadside mowing and shredding crops and stalks.

ModelWorking WidthWeightHP (Min.)
4150-01 4.5m (15') 2447kg 60
4150-03 4.5m (15') 2447kg 60

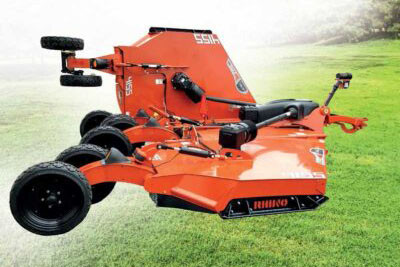

New FieldQuip Rhino Epic 4155 Series Flex Wing Slashers

Rhino Epic 4155 Series Flex Wing Slashers

The new 4155 Flex-Wing slasher is designed for performance, reliability, and value. This is the Ideal machine for heavy contract slashing.

ModelWorking WidthWeightHP (Min.)
4155 4.5m (15') 2447kg 60

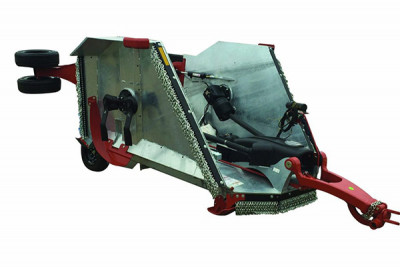

Rhino Icon 5150 Series Flex Wing Slashers

Suitable for clearing brush up to 127mm in diameter. Suitable applications include commercial mowing, heavy-duty agricultural use, industrial mowing and right-of-way mowing

ModelWorking WidthWeightHP (Min.)
5150-01 4.5m (15') 2556kg 70
5150-03 4.5m (15') 2556kg 70

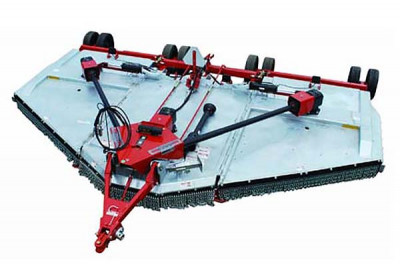

Rhino 6200 Series Flex Wing Slashers

Smooth top center deck is one of the strongest and easiest to clean of any cutter in the industry.Obstruction-free underside of deck for enhanced airflow in the cutting chamber to distribute cut material evenly.

ModelWorking WidthWeightHP (Min.)

6200-01

6.0m (20') 3580kg 80
6200-03 6.0m (20') 3580kg 80

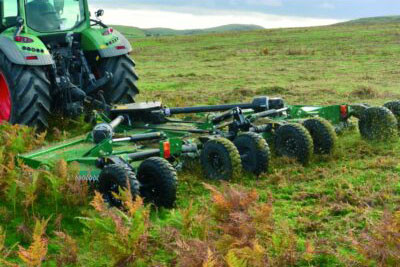

Spearhead Multicut 460 Flex Wing Slashers

The Multicut 460 has an award winning heritage of reliability and performance that sets it apart from the rest. Each rotor carries three high-lift swinging blades to provide an exceptionally clean cut and even spread of material.

ModelWorking WidthWeightHP (Min.)

Multicut 460 (1000RPM)

4.6m (15'1") 2310kg 70
Multicut 460 (540RPM) 4.6m (15'1") 2310kg 70

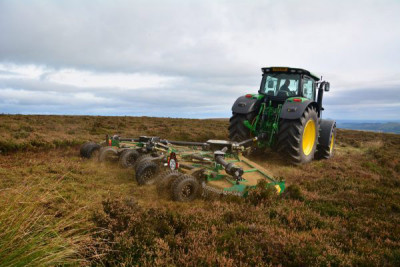

New FieldQuip Spearhead Multicut 620 Flex Wing Slashers

Spearhead Multicut 620 Flex Wing Slashers

The extra output Multicut 620 folding wing mower sets the standards in cutting performance with a total of 15 heavy duty cutting blades as standard ensuring the finest chop in fine grasses through to light scrub.

ModelWorking WidthWeightHP (Min.)
Multicut 620 6.2m (20'4") 2850kg 90

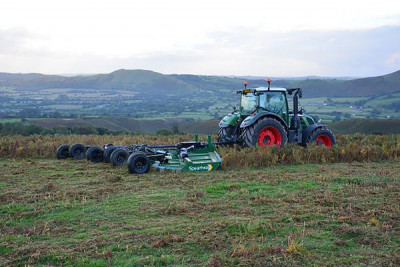

Spearhead Multicut 820 Flex Wing Slashers

When it comes to performance the high output Multicut 820 will go way beyond your expectations delivering a massive 8.2 metres of cutting width to effectively eat your way through the workload.

ModelWorking WidthWeightHP (Min.)
Multicut 820 8.2m (26'11") 4330kg 150

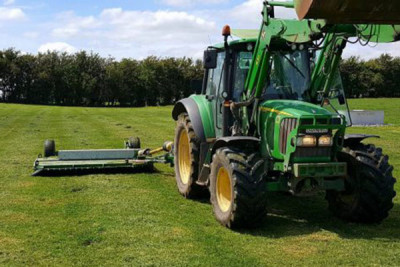

New FieldQuip Major Trailed Offset Topper

Major Trailed Offset Topper

The MAJOR Trailed Topper is a fully offset gear driven machine. It is offset for working and is folded into transport position hydraulically from the tractor seat.

ModelWorking WidthWeightHP(Min.)
MJ45-360
3.60 m (12')
1240kg 40-120

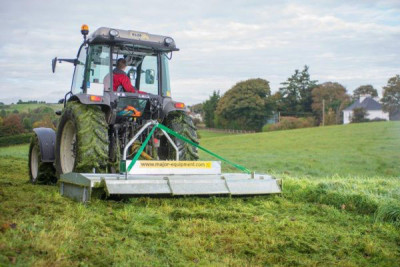

New FieldQuip Centre Mounted Topper Series

Centre Mounted Topper Series

The MAJOR Centre Mounted Topper is a fully gear driven machine fitted with high speed rotors and twin cut swinging blades.The 909 HD Topper is a heavy duty topper featuring galvanised deck, extra heavy duty gearbox and is standard with twin wheels.

ModelWorking WidthWeightPower (HP)
909 HD 2.7m (9') 560kg 50-120

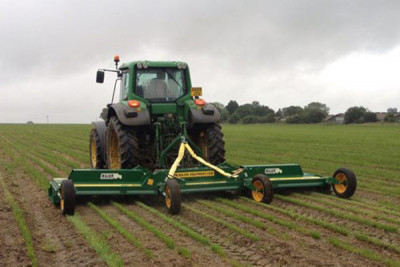

New FieldQuip Major Flex Wing Topper Series

Major Flex Wing Topper Series

The MAJOR Flex Wing Topper is a three point linkage mounted machine which folds up to 2.3m (7′ 6′) transport width. Like all MAJOR machines, the Flex Wing Topper is of robust construction. CE conformity is achieved through full PTO guarding and heavy rubber skirting to prevent debris from escaping.

ModelWorking WidthWeightHP (Min.)
18000FW-HD 5.40m (18') 1395kg 60-160

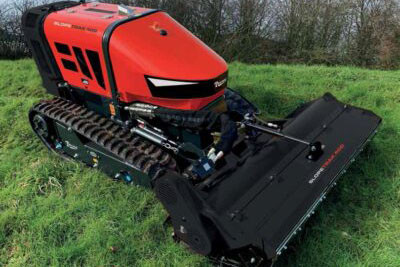

New FieldQuip Slopetrak 400 Radio Control Mowers

Slopetrak 400 Radio Control Mowers

The SlopeTrak 400 from Twose delivers outstanding performance and mowing efficiency. The powerful Stage 5, YANMAR 40hp 3 cylinder diesel engine driving the SlopeTrak 400 provides maximum power with low fuel consumption and low emissions.

ModelCutting WidthCutting Height
Slopetrak 400 1.3 m 20-85 mm

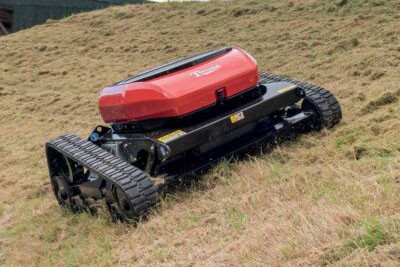

New FieldQuip Slopetrak 280 Radio Control Mowers

Slopetrak 280 Radio Control Mowers

The Twose SlopeTrak 280 from delivers outstanding performance and mowing efficiency. Featuring a new and powerful Vanguard 28hp engine, low fuel consumption and low emissions, and a hybrid electric drive, this machine delivers smooth operation every time.

ModelCutting WidthCutting HeightWeight
Slopetrak 280 1.1 m 25mm-180 mm 480kg
